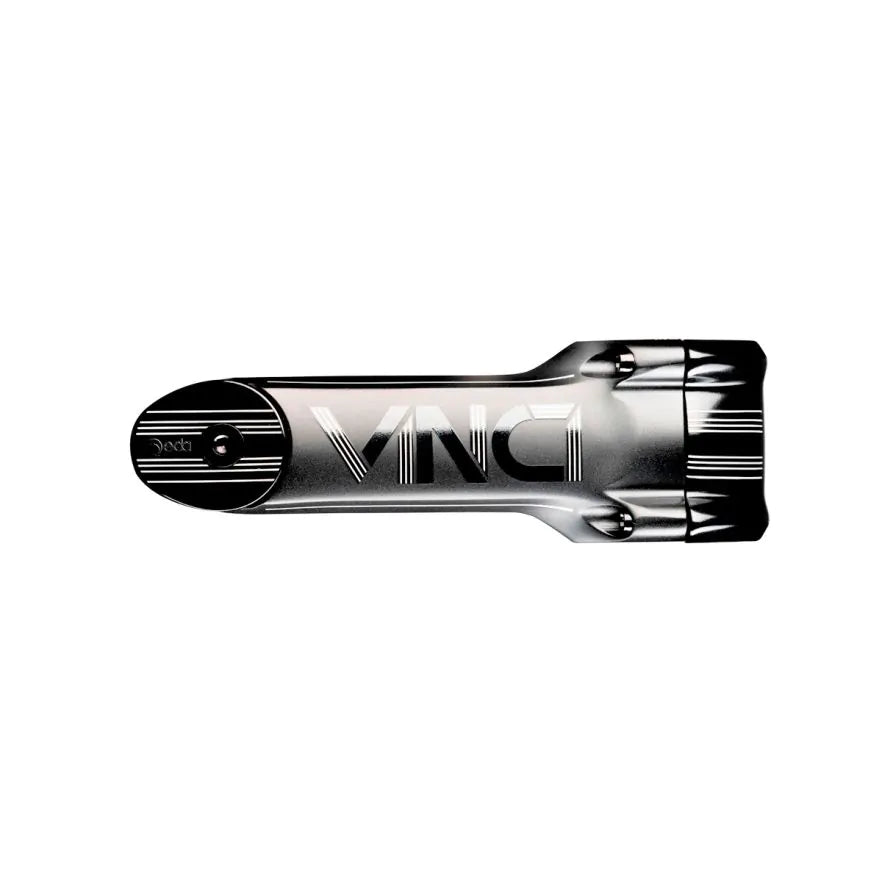

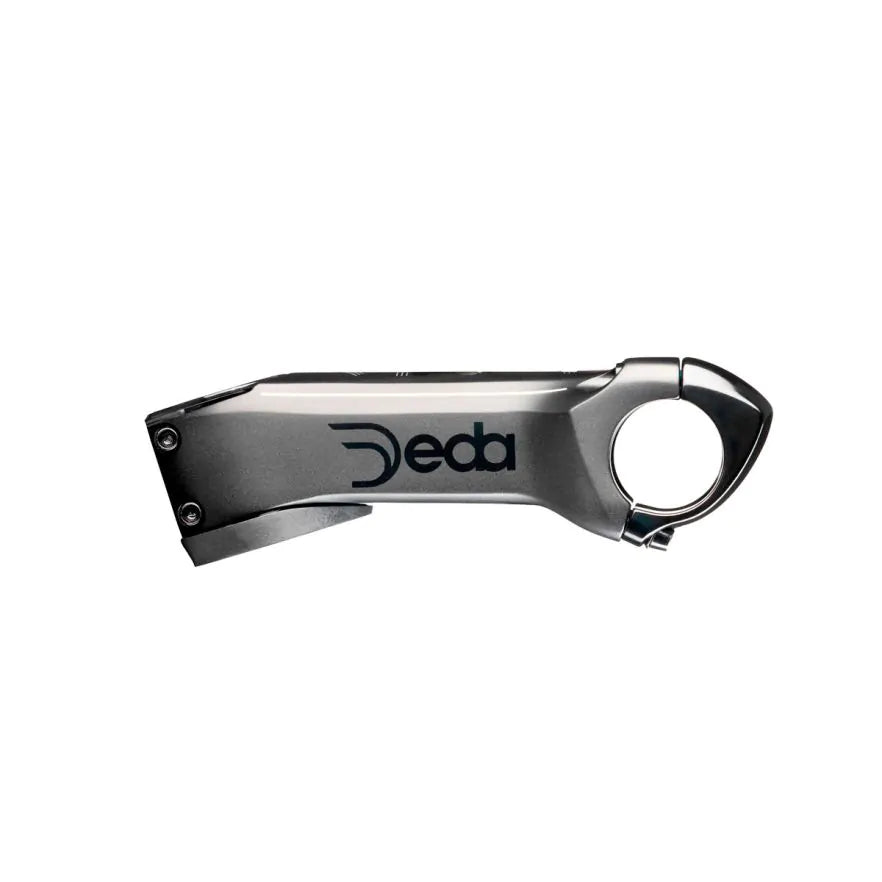

Deda Vinci Stem

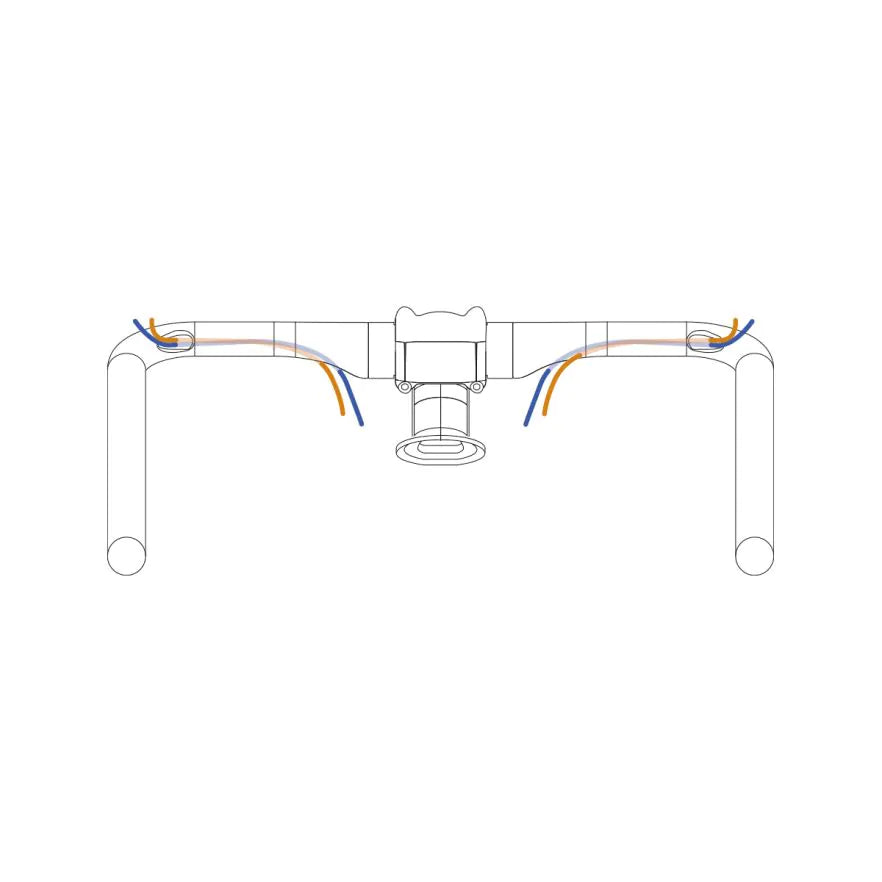

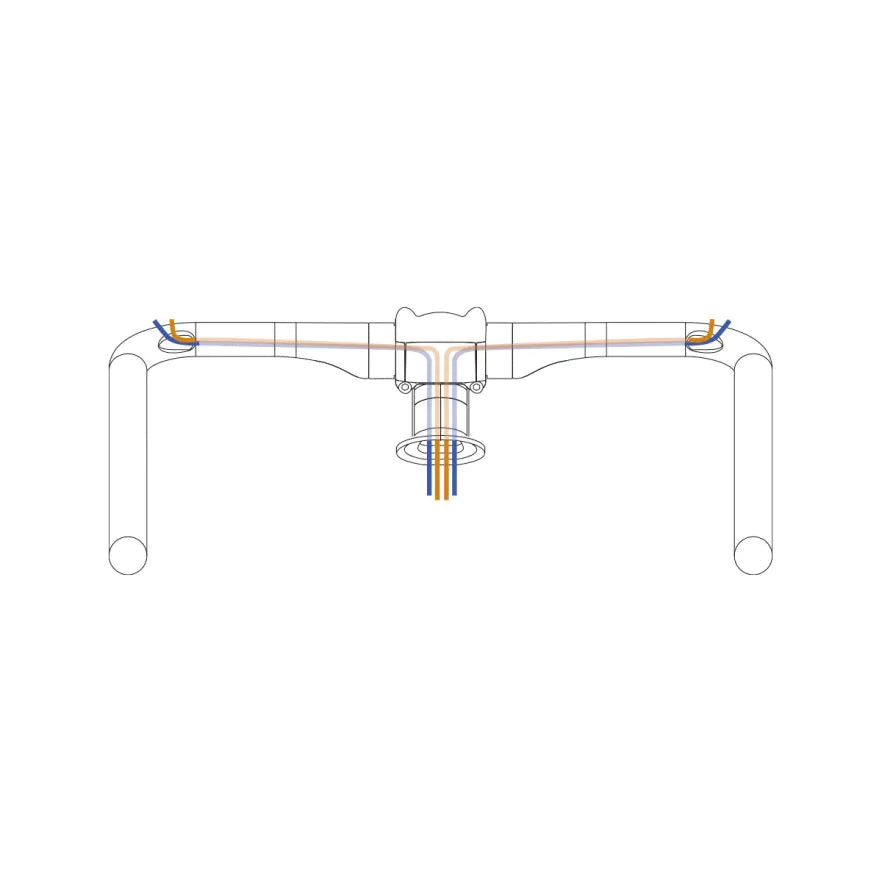

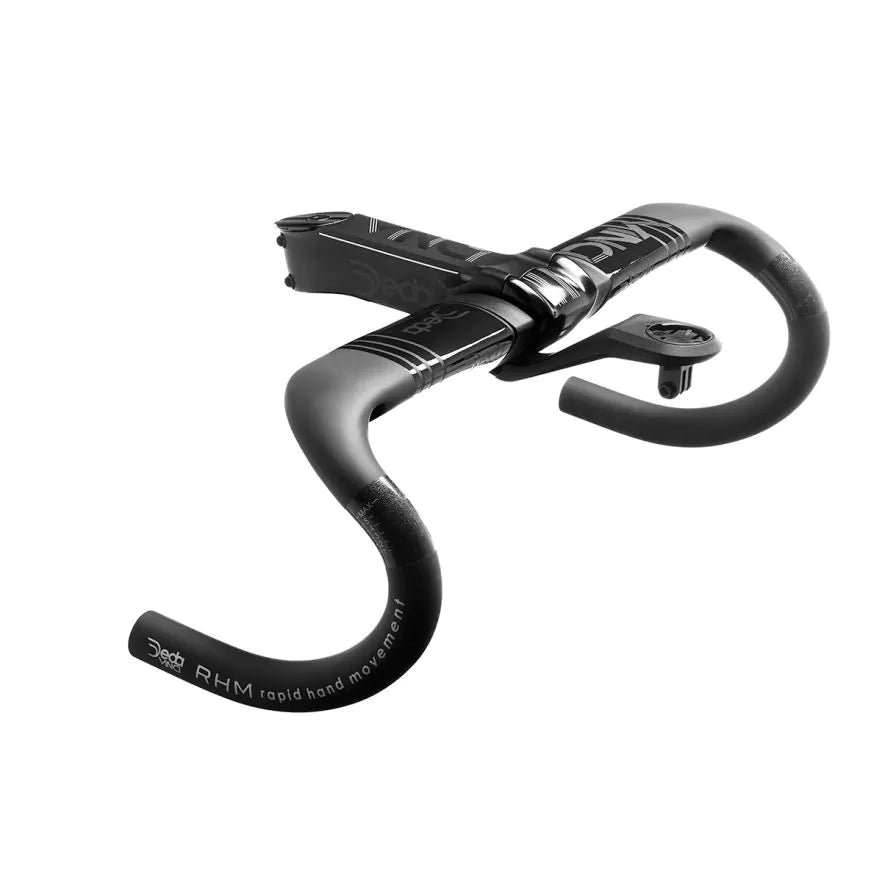

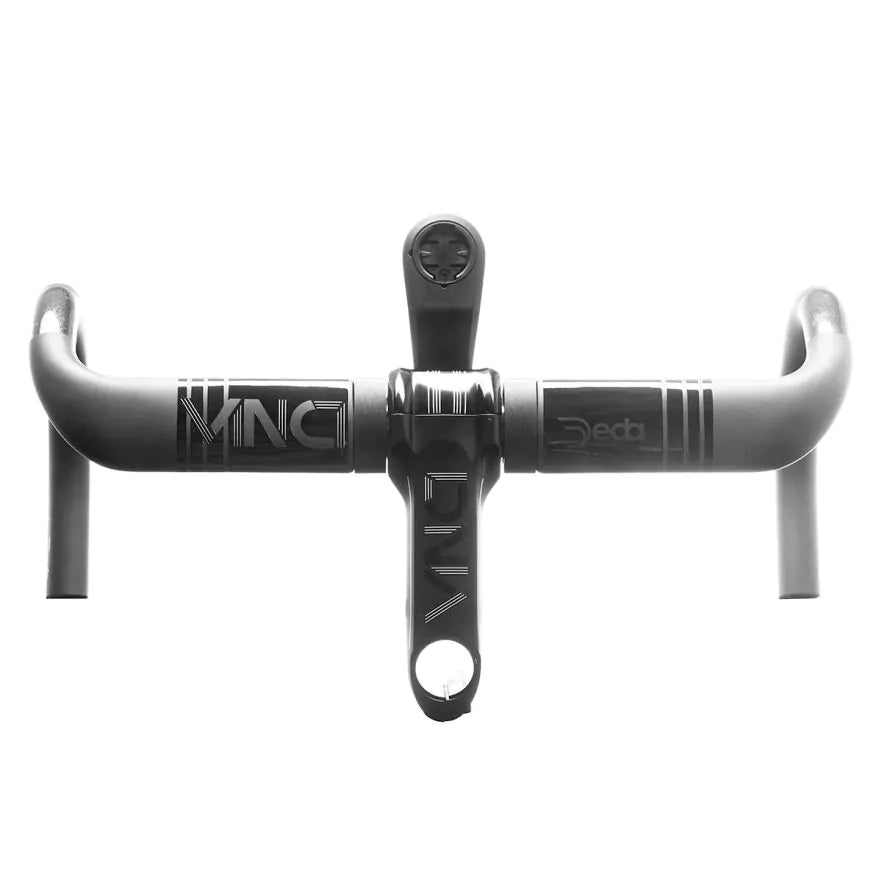

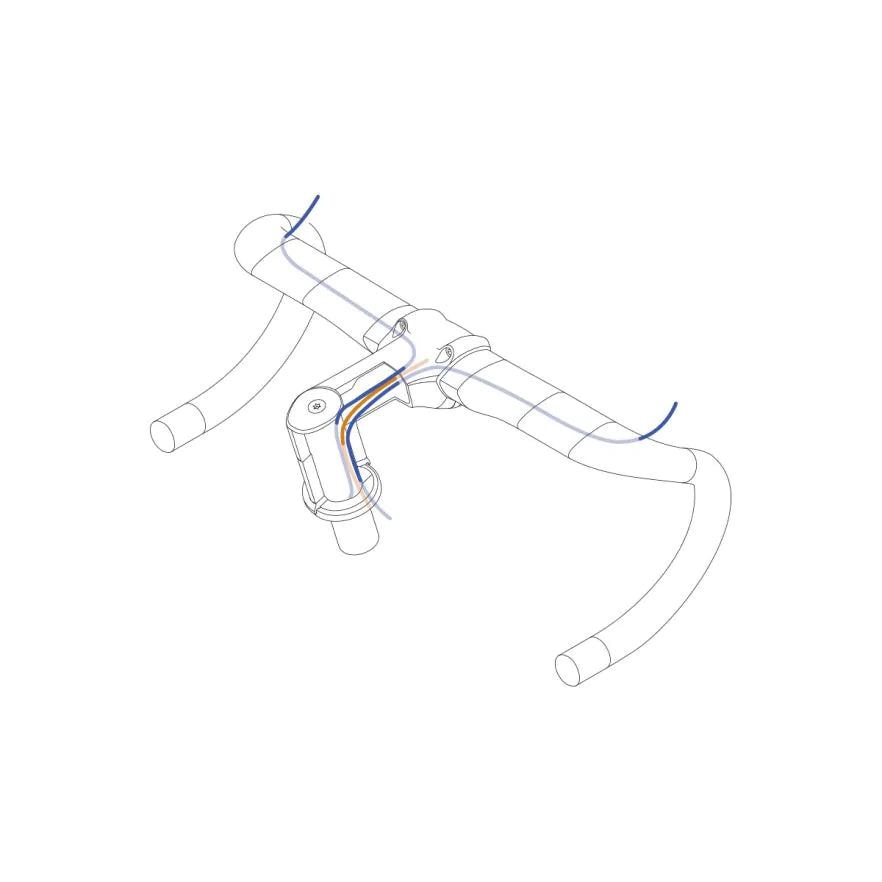

The Vinci stem is the first Deda stem designed to allow a fully integrated cable routing when assembled with Deda handlebars like the Vinci Handlebar featuring the new DCR system (Deda Internal Cable Routing).

Vinci is the most polyvalent stem on the market being compatible with traditional 1-1/8” fork steerer as well as 1-1/4”. The DCR system works with a standard tapered steerer with 1-1/8” upper diameter, but requires a 52mm (1.5”) upper headset bearing od. The stem leaves room at the back for the cables to fit the gap in between the headset bearing and the fork.

Specifications:

• Material:
• Body: Alloy 2014
• Screws: Steel
• Angle: 73°
• Bar Clamp Size: 31.7mm
• Steerer Diameter: 1 1/4"
• An adapter is included for 1 1/8”.
• Clamp Height: 40mm
• Length: 90mm | 100mm | 110mm | 120mm
• Weight: 260g (110mm)

Photo Credit: Deda Elementi
