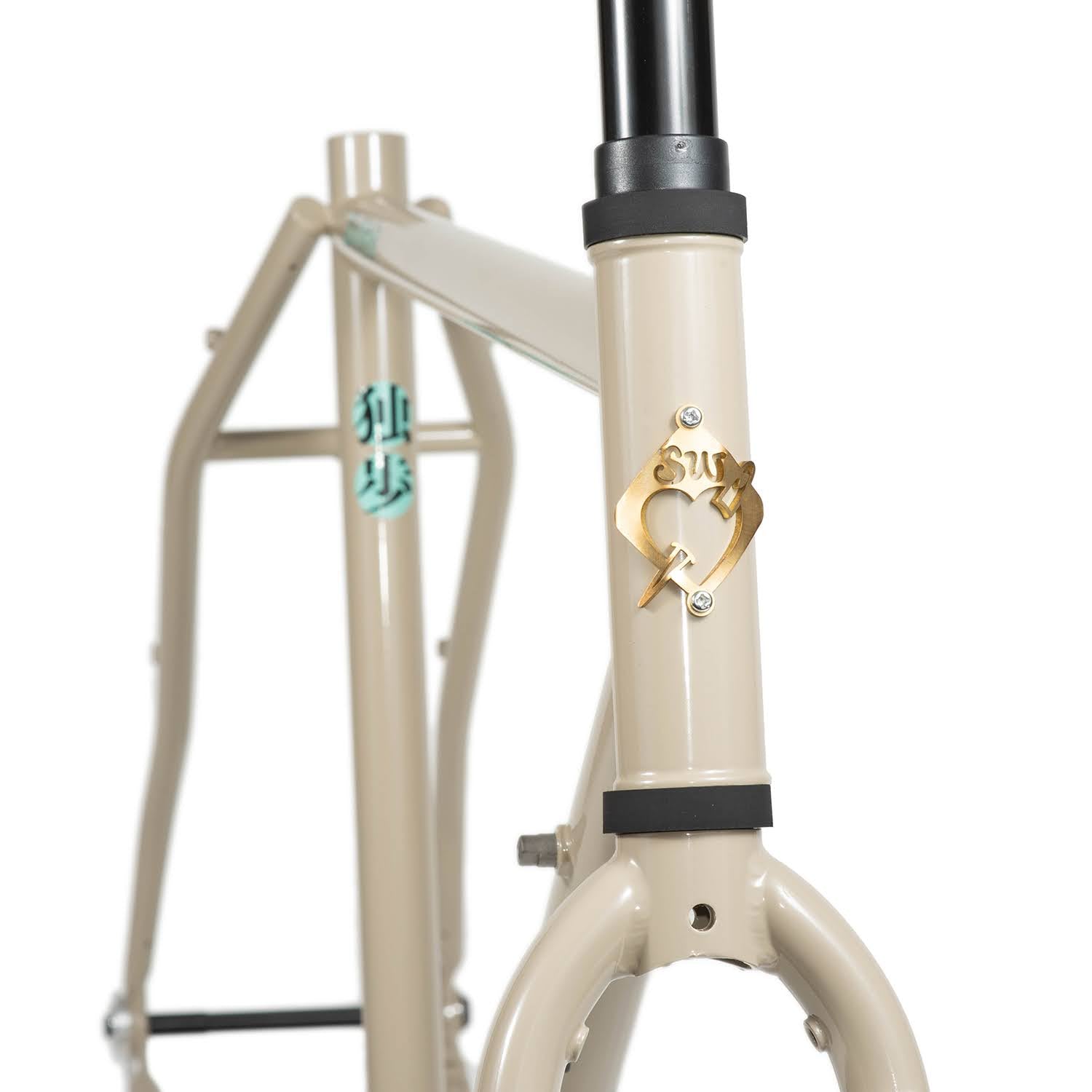

Sim Works Doppo ATB Frameset - Sand Beige
The Doppo All Terrain Bike (ATB), co-developed by SimWorks and Shin Fabrication, is the culmination of Simworks' efforts to provide a “Swiss-Army” solution for the free-spirited all-road rider.
With ample tire clearance in both 700c and 650b, it provides the rider confidence in various situations, both on and off-road, and meets the needs of today’s most discerning 2-wheeled wanderers.

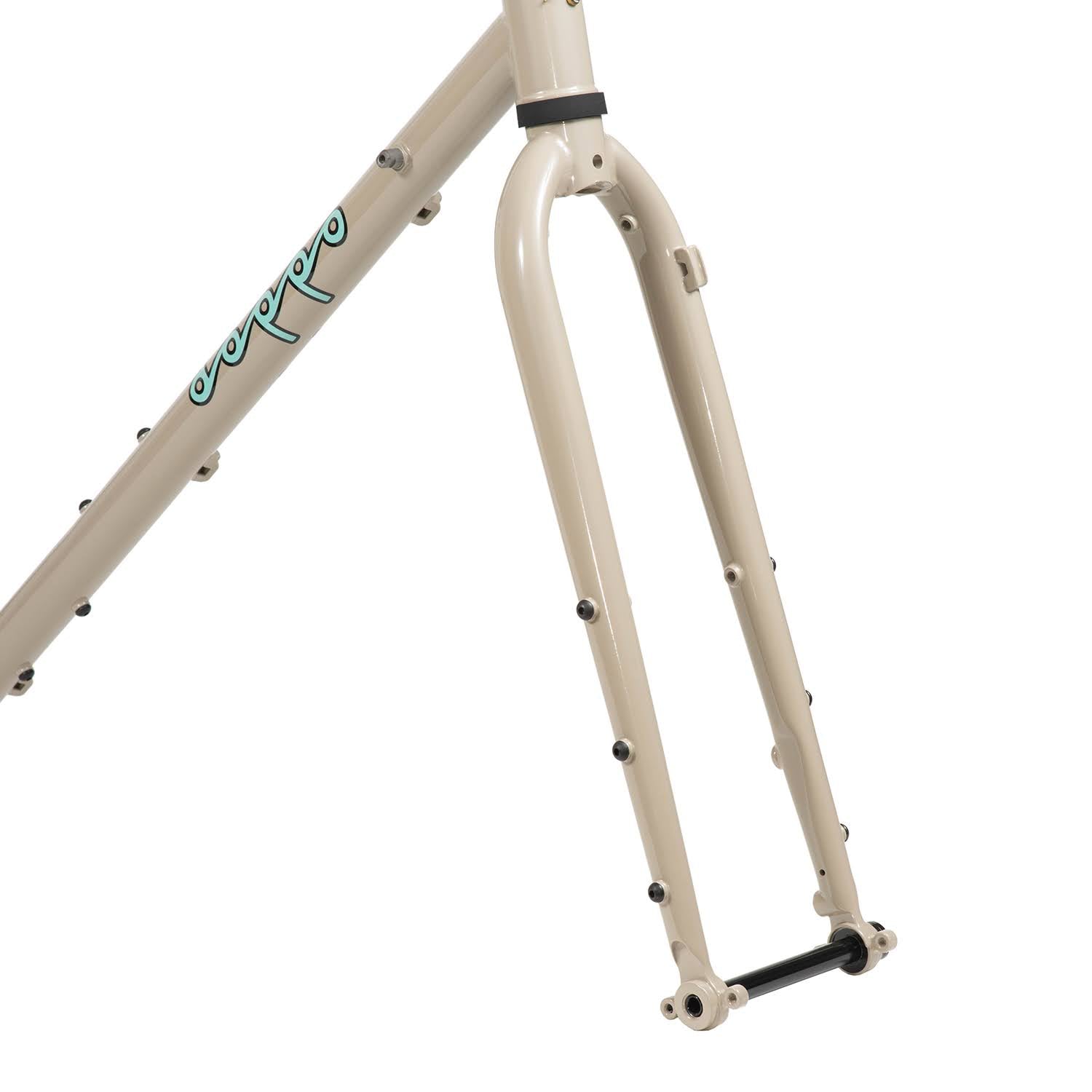

The included, purpose-built fork with full eyelets features hidden mounting bosses under the crown, allowing the fenders to be mounted more securely and the dimensions mirror those of the rear triangle- providing clearance for both wheel platforms.
Let your rides unfold as chapters in your novel life adventure. Be it long and winding ribbons of tarmac and gravel, or your favourite singletrack or forgotten two-track.
Offer yourself the tools you need to have the memorable experiences and discoveries awaiting you. Reach out to us here to start this journey for you!
Specifications:
- Frame/Fork: Tange CrMo Steel Tubeset, includes Tange Original Multipurpose Front Fork (TIG Welded Construction)
- Headtube: 1-1/8"
- Bottom Bracket: 68mm Standard BSA Thread
- Seatpost Clamp Size: 30.0mm
- Seatpost Diameter: 27.2mm
- Dropouts: Paragon Machine Works (142mm x 12mm)
- Flat Disc Mount (Front/Rear)
- Max Disc Rotor Size: 160mm
- Max Tire Clearance: 700C x 43mm / 650B x 55mm
- Weight (Size M): Frame - 2100g | Fork - 1220g
- Handmade in Japan
Please note Headset, Seatpost Clamp and BB Cable Guide are NOT included.
Photo Credit: Sim Works
